IDP-3 Dry Scroll Pump

Technical Specs

Peak pumping speed (60 Hz) 60 L/m, 3.6 m�/hr, 2.1 cfm
Peak pumping speed (50 Hz) 50 L/m, 3.0 m�/hr, 1.8 cfm
Ultimate pressure 2.5 � 10-1 torr (3.3 � 10-1 mbar)
Maximum inlet pressure 1 atmosphere (0 psig)
Maximum outlet pressure 1.4 atmosphere (6.5 psig)
Inlet connection NW16 KF flange
Exhaust connection 1⁄4-in. female nat�l pipe thread
(10 mm hose barb provided)
Exhaust connection adapter NW16 KF adapter provided
Gas ballast connection 1⁄8-in. female nat�l pipe thread
Ambient operating temperature 5 to 45 �C (41 to 113 �F)
Storage temperature �20 to 60 �C (�4 to 140 �F)
Motor rating 0.16 horsepower (0.12 kW)
Supply power 1 phase, 50-60 Hz,
100-115/200-240 VAC
Motor thermal protection Automatic
Rotation speed 3200 RPM at 60 Hz
2600 RPM at 50 Hz
Cooling Air-cooled
Weight 9.5 kg (21 lbs)
Shipping weight 10.5 kg (23 lbs)
Restrictions No corrosive, explosive, or particulate-forming gases
Leak rate (exhaust sealed) <1 � 10-6 std-cc/sec helium
Noise level (per ISO 11201) 55 dB(A)
Vibration at inlet (per ISO 11201) 1.5 mm/sec
Compliances Conforms with CE, CSA, CSA/CUS, Semi S2-703, and RoHS
IDP-3 Dry Scroll Pump
The Complete Solution
Description
Ordering Info
Pumping Speed Graph
IDP-3 Brochure (pdf 2.2 mB)
IDP-3 日本語 (pdf 2.3 mB)




Additional Vacuum Products & Services

Vacuum Pumps
Turbo Pumping Systems
Leak Detection
Valves
Components
Training
Customer Care

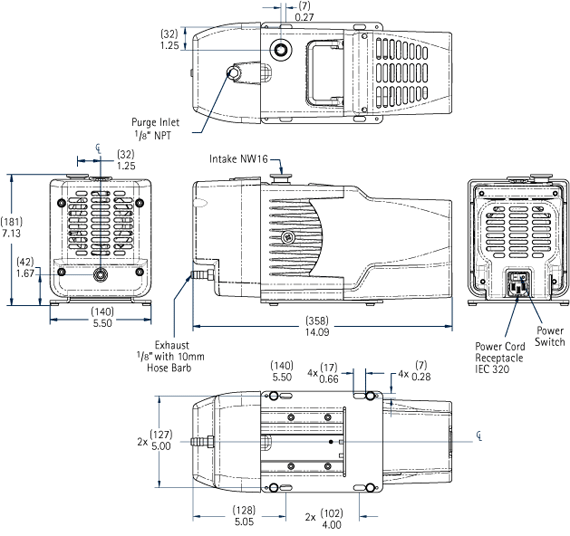

Outline Drawings
