Residential and Light Commercial Sewage Pumps
MW50
1/2 HP Residential and Light Commercial Sewage Pumps |
Download Product Brochure
Download Product Manual |
 |
Features and Benefits
|
•
|
Enclosed design for high efficiency pumping. |
|
•
|
Eliminates possibility of jamming between impeller and volute. |
|
•
|
Passes full 2” solids. |
|
•
|
Original performance can be restored if wear occurs by replacing volute seat ring. |
|
•
|
UL, CSA and SSPMA listed. |
|
•
|
Oil-filled motor for maximum heat dissipation and continuous bearing lubrication. |
|
•
|
High torque, permanent split capacitor (PSC) motors; no starting switches or relays to wear out. |
|
•
|
Field tested, wide angle, mercury-free piggy- back mechanical float switch provides maximum draw down. (Automatic models only.) |
|
| TWO VANE IMPELLER DESIGN PROVIDES MAXIMUM PUMP EFFICIENCY. DURABLE MOTOR WILL DELIVER MANY YEARS OF RELIABLE SERVICE. |
Product Capabilities
| Capacities To |
135 GPM
|
510 LPM
|
| Shut-Off Head |
27 ft.
|
8.23 m
|
| Max. Spherical Solids |
2 in.
|
50.8 mm
|
| Liquids Handling |
drain water and domestic sewage
|
| Intermittent Liquid Temp. |
up to 140°F
|
up to 60°C
|
| Motor Electrical Data |
1/2 hp, 1625 rpm
PSC (1 ph) oil-filled
115 volts, 9 amps, 1 ph, 60 Hz
230 volts, 4.5 amps, 1 ph, 60 Hz
|
| Motor Insulation |
Class B (130¾ C)
|
| Acceptable pH Range |
5-9
|
| Specific Gravity |
.9-1.1
|
| Viscosity |
28 - 35 SSU
|
| Discharge, NPT |
2 in.
|
50.8 mm
|
| Simplex Dia. |
24 in.
|
61 mm
|
| Duplex Dia. |
36 in.
|
91.4 mm
|
|

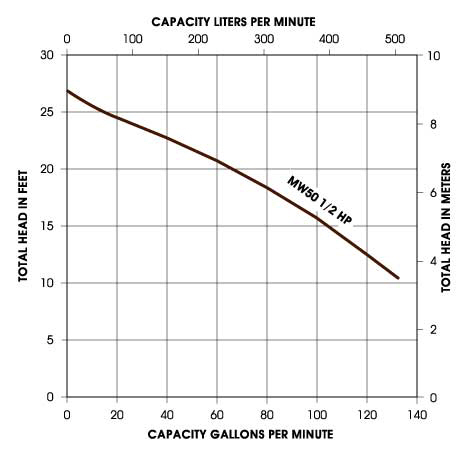

Product Performance Chart
|
|
|
|
|
|
|
|
