TECHNICAL DATA :
Displacement (50 Hz operation) : 7 l/min (0.247 ft3.min-1)
Ultimate vacuum : < 45 mbar
Maximum outlet pressure : 1500 mbar abs.
Connections : DN16(CF or KF) or Cajon®1/2"
Motor power : 0.12 kW
Enclosure rating : IP 55
Motor voltage :
o 3-phase 50 Hz 230-400 V
o 3-phase 60 Hz 220-440 V
Other voltage : On application
Weight : 25 kg (55.1 lb)
Leak tightness (helium) : < 10-8 mbar.l.s-1

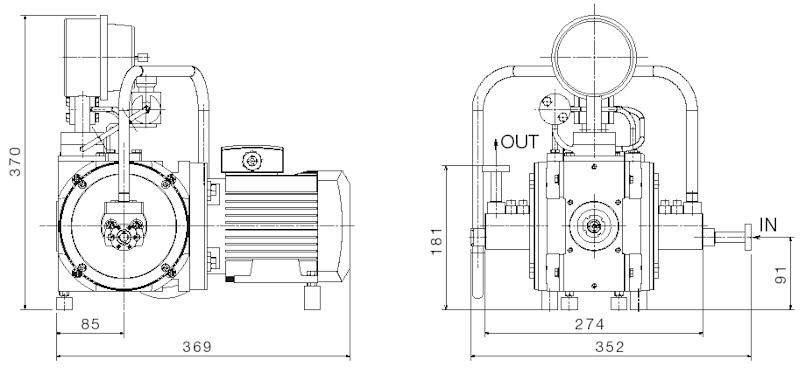

Dimensions (in milimiters) :
