TECHNICAL DATA :
Displacement (50 Hz operation) : 600 m3/h (350 ft3.min-1)
Peak pumping speed (50 Hz operation) : 520 m3/h (306 ft3.min-1)
Ultimate vacuum : < 8.10-2 mbar
Connections : DN 100 and 63
Motor power (1 or 2 motors) : 15 kW
Enclosure rating : IP 55
Motor voltage :
o 3-phase 50 Hz 230-400 V
o 3-phase 60 Hz 240-480 V
Other voltage : On application
Weight : 4800 kg (10600 lb)
Leak tightness (helium) : < 10-8 mbar.l.s-1

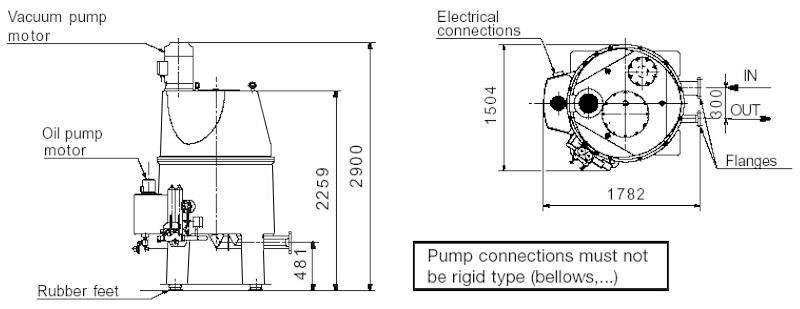

Dimensions (in milimiters) :
