TECHNICAL DATA :
Displacement (50 Hz operation) : 150 m3/h (90 ft3.min-1)
Peak pumping speed (50 Hz operation) : 120 m3/h (70.7 ft3.min-1)
Ultimate vacuum : 5.10-1 mbar
Connections : Meeting your need
Motor power : 4 kW
Enclosure rating : IP 55
Motor voltage :
o 3-phase 50 Hz 230-400 V
o 3-phase 60 Hz 220-440 V
Other voltage : On application
Weight : 1250 kg (2750 lb)
Leak tightness (helium) : < 10-8 mbar.l.s-1

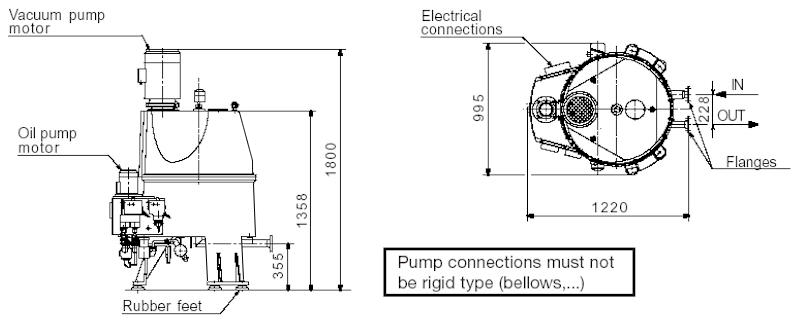

Dimensions (in milimiters) :
