TECHNICAL DATA :
Displacement :
o 50 Hz operation 15 m3/h (8.8 ft3.min-1)
o 60 Hz operation 18 m3/h (10.6 ft3.min-1)
Peak pumping speed (50 Hz operation) : 12 m3/h (7.1 ft3.min-1)
Ultimate vacuum (with backing pump) : 5.10-3 mbar
Connections : Meeting your need
Motor power : 0.37 kW
Enclosure rating : IP 55
Motor voltage :
o 3-phase 50 Hz 230-400 V
o 3-phase 60 Hz 240-480 V
Other voltage : On application
Weight : 67 kg (148 lb)
Noise : 51,5 dB(A)
Leak tightness (helium) : < 10-8 mbar.l.s-1

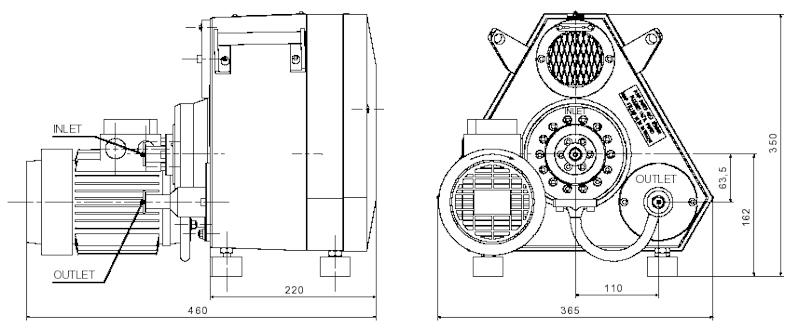

Dimensions (in milimiters) :
